31  Norms and Similarity

31.1 Learning objective

Understand the L2 norm as a measure of image energy, how normalisation removes brightness, and why cosine similarity handles contrast scaling but fails on brightness offsets.

---

31.2 L2 norm — vector length

The L2 norm is the length of a vector — the distance from the origin to the point. For an image patch, it measures the overall energy or magnitude of the pixel values.

\|\vec v\| \;=\; \sqrt{\sum_{i=1}^n v_i^2} \;=\; \sqrt{v_1^2 + v_2^2 + \cdots + v_n^2}

A bright image has a large L2 norm. A dark image has a small L2 norm. Two images with the same pattern but different brightness have different L2 norms.

The squared L2 norm is the dot product of a vector with itself:

\|\vec v\|^2 \;=\; \vec v \cdot \vec v \;=\; \sum v_i^2

This is why the L2 norm is also called the energy — total “power” in the pixel values.

import numpy as np
import matplotlib.pyplot as plt

COLORS = {
    "primary":   "#2196F3",
    "secondary": "#4CAF50",
    "result":    "#FFC107",
    "highlight": "#F44336",
    "transform": "#9C27B0",
}

bright = np.array([200, 220, 240], dtype=float)
dim    = np.array([ 50,  70,  90], dtype=float)
print(f"||bright|| = {np.linalg.norm(bright):.2f}")
print(f"||dim||    = {np.linalg.norm(dim):.2f}")
print(f"Same pattern, different brightness → different L2 norms.")

||bright|| = 382.10
||dim||    = 124.50
Same pattern, different brightness → different L2 norms.

---

31.3 Unit vectors — normalisation removes brightness

A unit vector has length 1. Dividing any vector by its L2 norm gives a unit vector pointing in the same direction:

\hat v \;=\; \frac{\vec v}{\|\vec v\|}

For image patches, this operation removes brightness (the length) and keeps only the pattern (the direction). Two patches with the same pattern but different brightness produce the same unit vector.

All normalised patches lie on the unit sphere. Patches with the same pattern map to the same point on that sphere regardless of brightness.

def unit(v):
    return v / np.linalg.norm(v)


u_bright = unit(bright)
u_dim    = unit(dim)

print("bright (raw)      :", bright)
print("bright (unit)     :", np.round(u_bright, 4))
print("dim    (raw)      :", dim)
print("dim    (unit)     :", np.round(u_dim, 4))
print()
print("Are unit versions equal? ", np.allclose(u_bright, u_dim))

bright (raw)      : [200. 220. 240.]
bright (unit)     : [0.5234 0.5758 0.6281]
dim    (raw)      : [50. 70. 90.]
dim    (unit)     : [0.4016 0.5623 0.7229]

Are unit versions equal?  False

(They aren’t quite equal — bright and dim aren’t true constant-multiples of each other. They’re close in pattern but not identical. Picking two perfectly-scaled patches would make the unit-vector equality exact.)

---

31.4 Cosine similarity

From the geometric definition of the dot product:

\vec a \cdot \vec b \;=\; \|\vec a\|\,\|\vec b\|\,\cos\theta

Rearranging:

\cos\theta \;=\; \frac{\vec a \cdot \vec b}{\|\vec a\|\,\|\vec b\|}

This is the cosine similarity — the dot product of the two unit vectors. It measures the angle between them, ignoring their lengths (brightness).

\cos\theta	Meaning	Image example
+1	Same direction	Same pattern, any brightness
0	Perpendicular	Completely unrelated patterns
-1	Opposite direction	Inverted (negative) image

def cosine_similarity(a, b):
    return np.dot(a, b) / (np.linalg.norm(a) * np.linalg.norm(b))


template = np.array([ 50, 150, 250], dtype=float)
similar  = np.array([ 60, 140, 230], dtype=float)
brighter = template * 1.5            # contrast scaled
inverted = 255 - template            # negative image

for name, patch in [("template (self)", template),
                    ("similar",        similar),
                    ("contrast-scaled (×1.5)", brighter),
                    ("inverted",       inverted)]:
    print(f"  cos(template, {name:<25s}) = {cosine_similarity(template, patch):+.4f}")

  cos(template, template (self)          ) = +1.0000
  cos(template, similar                  ) = +0.9988
  cos(template, contrast-scaled (×1.5)   ) = +1.0000
  cos(template, inverted                 ) = +0.3999

Cosine similarity handles contrast scaling (a \cdot T) perfectly because scaling changes the vector length but not its direction.

---

31.5 The blind spot — brightness offset

A brightness offset (T + b) shifts every pixel by the same constant. This pushes the vector toward the [1, 1, \ldots, 1] direction, changing the angle — so cosine similarity gives the wrong answer.

shifted = template + 50      # brightness offset

print(f"cos(template, template + 50) = {cosine_similarity(template, shifted):+.4f}")
print(f"(Even though only brightness changed, similarity dropped from 1.0)")

cos(template, template + 50) = +0.9939
(Even though only brightness changed, similarity dropped from 1.0)

This is why TM_SQDIFF_NORMED fails on scenes with illumination offsets. Fixing it requires mean subtraction — covered in the next chapter.

---

31.6 Visualising it

ts = [
    ("Template",                template),
    ("× 1.5 (contrast)",        brighter),
    ("+ 50 (brightness)",       shifted),
    ("Inverted",                inverted),
]

fig, axes = plt.subplots(1, len(ts), figsize=(13, 3.5))
for ax, (name, vec) in zip(axes, ts):
    ax.bar(range(len(vec)), vec, color=COLORS["primary"], alpha=0.85)
    ax.set_ylim(-50, 280)
    ax.set_xticks(range(len(vec)))
    cs = cosine_similarity(template, vec)
    ax.set_title(f"{name}\ncos = {cs:+.3f}", fontsize=10)
plt.tight_layout()
plt.show()

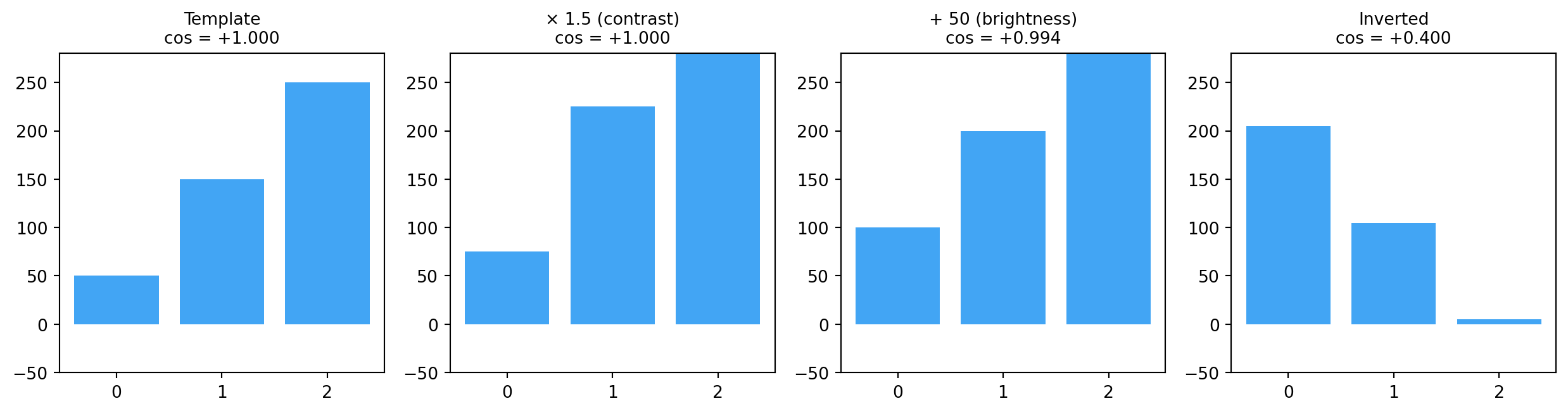

Original, scaled, shifted, and inverted versions of the same template, with cosine similarity to the original.

---

31.7 Exercises

1. Compute \|\vec v\| for [3, 4] and [6, 8]. What’s the cosine similarity?
2. Show that \|c \vec v\| = |c| \|\vec v\| for any scalar c.
3. For two random 9-D vectors, compute their cosine similarity. How close to 0 is it on average? Repeat 1 000 times and plot a histogram.
4. Apply a brightness offset of b = 30 to a template; show how cosine similarity changes as a function of b.

---

31.8 Glossary

L2 norm — Euclidean length: \|\vec v\| = \sqrt{\sum v_i^2}.

energy — squared L2 norm; sum of squared values.

unit vector — vector of length 1.

normalisation — dividing by L2 norm to obtain a unit vector.

cosine similarity — dot product of unit vectors; in [-1, 1].

brightness offset — adding the same constant to every pixel.

contrast scaling — multiplying every pixel by the same constant.
